RLT4X150S LIGHT TOWER
Clean Energy, Pure Light
THE ULTIMATE IN ECOLOGY, IN COMPACT DIMENSIONS AND EASILY TRANSPORTABLE
Put your work in its best light. Whether working in construction, mining, oil & gas or the rental markets, you want job site lighting that will not fail you when you need it most. Expand your work day and create a safer work area with light towers that provide superior power lighting.
METAL HALIDE LIGHTS
LED or standard light bulbs provide crisp, clean light, Up to 10 hours of silent emission-free operation. Metal Halide lights ideal working conditions on the job site.
DURABLE MAST
The wide body vertical mast light towers are perfect for remote applications including oil and gas worksites, mining, and industrial applications.

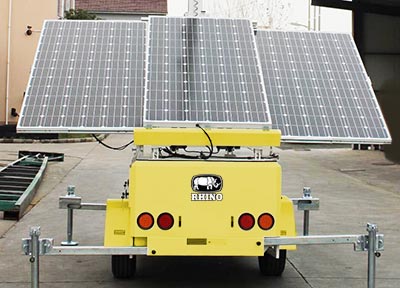

SOLAR POWER
The ultimate in ecology, in compact dimensions and easily transportable. An easy control panel and the possibility of connecting to an external power source.
| Solar model | JAM6-72-310/S1 |
| Maximum Power W | 310 |
| Maximum Power Voltage(V) | 37.9 |
| Maximum Power Current(A) | 8.18 |
| Dimension L*W*H mm (in) | 1,996x991x45 (78.6x39x1.8) |
| Lifting angle | 0-39 degree |
| Extending type | sliding |
| Extending area m2 (ft2) | 5.2 (56) |
| LED Lamp model | JR303-150 |
| Input Voltage | DC24V |
| LED Power | 4x150W |
| Light Beam Angle | 120 degree |
| LED Luminous flux | 1,500 Lm |
| Correlated Color Temperature | 500K |
| Protection class | IP65 |
| Battery Bank model | DJM12200 (12V 200AH) |
| Type | Solar Energy Deposited |
| Max. Charging Current(A) | 28.5 |
| Quantity(pcs) | 10 |
| Mast Lifting & Extension | Hydraulic |
| Length mm (ft) | 4,468 (14.7) |
| Width mm (ft) | 1,650 (5.4) |
| Height mm (ft) | 2,360 (7.7) |
| Mast Heigth(Fully Extended) m (ft) | 9 (29.5) |
| Net Weight kg (lb) | 1,950 (4,299) |
