PT RTL36 TRACK LOADER
Performance and Versatility.
OPTIMIZED PERFORMANCE AND SIMPLIFIED SERVICEABILITY
Designed to be productive, this machine will give you complete satisfaction in a wide range of tough applications in the most efficient and productive way. Its design also delivers strength and durability with excellent control and unmatched ease of operation. It works at the point of combustion to optimize engine performance.
PRODUCTIVITY
Save money and transport time with one rugged machine that does it all – land clearing, digging, grading, truck loading, slope work and more. Crawler loaders give you lower ground pressure and better traction so you can start the job sooner, and work longer, in all kinds of underfoot conditions.
COMFORT

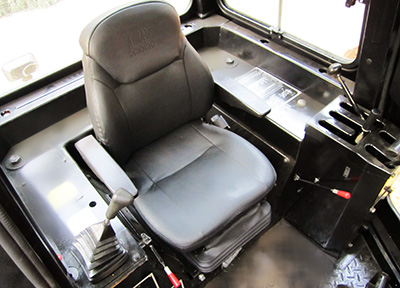

A spacious operator environment features an adjustable seat and ergonomic pilot controls for improved comfort and with the standard pattern selector, operators can quickly switch to the style they prefer.
RELIABILITY
Rhino RTL Track Loadersexcavators have safety and serviceability features that protect machinery, operators and bystanders alike, as well as minimize downtime.
| Make/ Engine Model | NTA855 |
| Cylinders | 6 |
| Displacement L (cu. In) | 14(854) |
| Net Power kW (Hp) @ 2,200 rpm | 257(345) |
| Net Peak Torque Nm (lb-ft) @ 1,780 rpm | 1,423(1,050) |
| Fuel System | Direct Injection fuel pump controlled by solenoid |
| Aspiration | Turbocharged, charge air cooled |
| Type | Gear pump |
| Pressure Mpa (psi) | 14(2,031) |
| Max. Flow L/min (gpm) | 355(94) |
| Control | Lever control for blade with float mode; lever control for ripper |
| Track Gauge mm (in) | 2,140(84.3) |
| Grouser Width mm (in) | 560(22.0) |
| Chain | Sealed and lubricated |
| Shoes, Each Side | 41 |
| Track Rollers, Each Side | 7 |
| Track Length on Ground mm (in) | 3,160(124.4) |
| Ground Contact Area cm2 (sq.in) | 35,392(5,486) |
| Ground Pressure Mpa (psi) | 0.11(16.09) |
| Track Pitch mm (in) | 229(9.0) |
| Blade Type | Angle | Straight-tilt |
| Base Weight kg(lb) | 35,750 (78,815) | 35,900 (79,146) |
| Weight with 3-Shank Ripper kg(lb) | 40,946 (90,270) | 40,960 (90,301) |
| Overall Height to Top of Exhaust mm (ft) | 2,680(8.8) |
| Height to Top of Cab mm (ft) | 3,640(11.9) |
| Overall Length mm (ft) | 6,880(22.6) |
| Width Over Track mm (ft) | 2,810(9.2) |
| Blade Width mm (ft) | 4,130(13.5) |
| Blade Height mm (ft) | 1,590(5.2) |
| Tread Depth with Single-Bar Grouser mm (in) | 80(3.1) |
| Ground Clearance in Dirt mm (in) | 404(15.9) |
| Length With Ripper mm (ft) | 8,560(28.1) |
| Blade Lift Height mm (in) | 1,560(61.4) |
| Blade Digging Depth mm (in) | 600(23.6) |
| Blade Cutting-Edge Angle | 55 degrees |
| Blade Capacity m3 (cu. Yd) | 9.3(12.2) |
