PT RTC5013 TOWER CRANE
Previous slide
Next slide
Performance for Long Working Hours
EXCELLENT MANEUVERABILITY AND LOAD MOMENT PRECISION
Easy erection/maintenance and parts modularity provide a high level of cost-effectiveness. Ergonomic cabs enable crane operators to work efficiently and provide reliable performance. Its reputable time-proven design quality and components are engineered to deliver safe, reliable, cost-effective performance for long working hours.
PERFORMANCE
PRECISION
Designed for easy maintenance and reliable performance for excellent uptime, Rhino tower cranes provide excellent maneuverability and load moment precision.
COMFORT

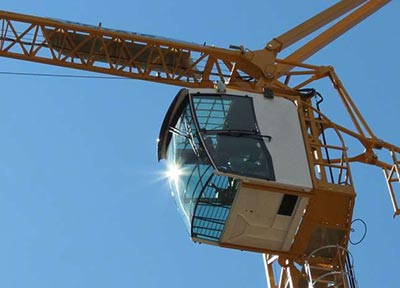

When the operator steps into Rhino Tower Crane, they find themselves in a fully glazed front area that considerably throws open the sight lines and field of vision and maximum comfort.
| Radius | US Tons | Tons | Lb |
|---|---|---|---|
| At 2.5m – 13.7m (8 ft – 45 ft) | 6.6 | 6.0 | 12,000 |
| At 16 m (52 ft) | 6.0 | 5.46 | 10,920 |
| At 18 m (59 ft) | 4.9 | 4.41 | 8,820 |
| At 20 m (66 ft) | 4.3 | 3.91 | 7,820 |
| At 22 m (72 ft) | 3.9 | 3.51 | 7,020 |
| At 24 m (79 ft) | 3.5 | 3.18 | 6,360 |
| At 25 m (82 ft) | 3.3 | 3.00 | 6,000 |
| At 28 m (92 ft) | 2.9 | 2.65 | 5,300 |
| At 30 m (98 ft) | 2.7 | 2.45 | 4,900 |
| At 32 m (105 ft) | 2.5 | 2.26 | 4,520 |
| At 34 m (112 ft) | 2.3 | 2.10 | 4,200 |
| At 35 m (115 ft) | 2.2 | 2.03 | 4,060 |
| At 36 m (118 ft) | 2.2 | 1.96 | 3,920 |
| At 38 m (125 ft) | 2.0 | 1.84 | 3,680 |
| At 40 m (131 ft) | 1.9 | 1.72 | 3,440 |
| At 42 m (138 ft) | 1.8 | 1.62 | 3,240 |
| At 44 m (144 ft) | 1.7 | 1.53 | 3,060 |
| At 46 m (151 ft) | 1.6 | 1.44 | 2,880 |
| At 48 m (154 ft) | 1.5 | 1.37 | 2,740 |
| At 50 m (164 ft) | 1.4 | 1.30 | 2,600 |
| Metric | US | |
|---|---|---|
| Normal Hoisting Moment | 760KNm | 560,547 ft-lb |
| Rated Hoisting Weight at Jib Nose | 1.3t | 2,600 lb |
| Working Radius | 2.5-50m | 8-158 ft |
| Rear Swing Radius | 12m | 39.6ft |
| Max. Working Wind Speed | 20m/s | 66ft/s |
| Max. Wind Speed for Top Rising | 13m/s | 43ft/s |
| Ambient Temperature Working Range | -20 to 40ºC | -4 to 104 ºF |
| Standard Height | 40m | 131.2ft |
| Max. Height | 140m | 459ft |
| Reach | 50m | 164.0ft |
| Max. Capacity | 6t | 12,000lb |
| Ballast Weight | 12t | 24,000lb |
| Total Weight (with anchoring) | 46t | 91,800lb |
