PT RTC2325 SELF ERECTING TOWER CRANE
Previous slide
Next slide
Quick Set Up and Transportation
THE SELF ERECTING TOWER CRANE IS THE PERFECT WORKHORSE
Rhino RTC2325 self-erecting tower crane is highly valued for fast, efficient lifting solutions all over the world. Designed for excellent productivity and long service life at economical operating costs, the self erecting tower crane is the perfect workhorse, offering customers an excellent return on investment.

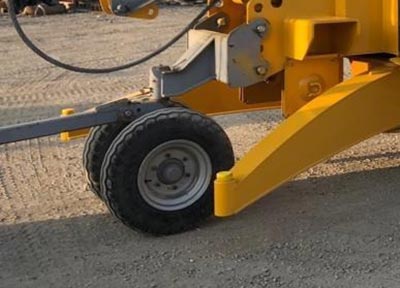

EASY ERECTION

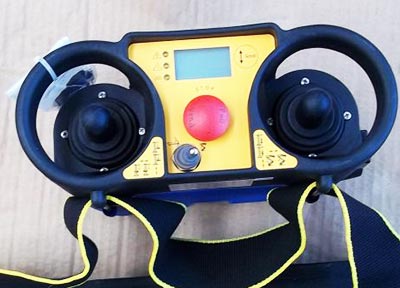

REMOTE CONTROL
Apowerful, intelligent control post for maneuvers that are simpler and safer. The design and ergonomics are perfectly adapted to the remote control.
REALIABILITY

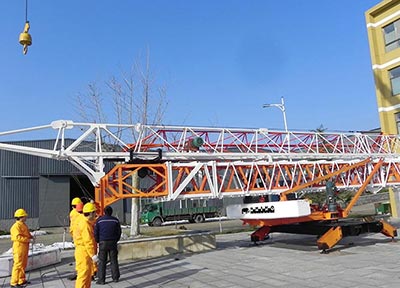

The crane’s compact footprint allowed it to be easily positioned into place an get right work, without the need for additional roadways or having trees cut down.
| Radius | US Tons | Tons | Lb |
|---|---|---|---|
| At 3m – 11.7m (9.8 ft – 38 ft) | 2.2 | 2.0 | 4,000 |
| At 12 m (39 ft) | 2.1 | 1.94 | 3,880 |
| At 13 m (43 ft) | 1.9 | 1.76 | 3,520 |
| At 14 m (46 ft) | 1.8 | 1.62 | 3,240 |
| At 15 m (49 ft) | 1.6 | 1.49 | 2,980 |
| At 16 m (52 ft) | 1.5 | 1.40 | 2,800 |
| At 17 m (56 ft) | 1.4 | 1.28 | 2,560 |
| At 18 m (59 ft) | 1.3 | 1.20 | 2,400 |
| At 19 m (62 ft) | 1.2 | 1.12 | 2,240 |
| At 20 m (66 ft) | 1.2 | 1.05 | 2,100 |
| At 21 m (69 ft) | 1.1 | 0.99 | 1,980 |
| At 22 m (72 ft) | 1.0 | 0.94 | 1,880 |
| At 23 m (76 ft) | 1.0 | 0.89 | 1,780 |
| At 24 m (79 ft) | 0.9 | 0.84 | 1,680 |
| At 24.5 m (80 ft) | 0.9 | 0.82 | 1,640 |
| At 25 m (82 ft) | 0.9 | 0.80 | 1,600 |
| At 35 m (115ft) | 0.9 | 0.80 | 1,600 |
| Metric | US | |
|---|---|---|
| Reach | 25 m | 82 ft |
| Max Capacity | 2 tons | 4,000 lb |
| Normal Hoisting Moment | 235KNm | 173,327 ft-lb |
| Rated Hoisting Weight at Jib Nose | 0.80 tons | 1,600 lb |
| Working Radius | 3 – 25 m | 9.8 – 82 ft |
| Ambient Temperature Working Range | -20 to 40 ºC | -4 to 104ºF |
| Max. Height | 23 m | 75 ft |
| Max. Height Jib Elevated | 35 m | 115 ft |
