RMT55 MINING TRUCK
Strong Performance
PREVENTS THE FATIGUE BREAKAGE OF FRAME AND REDUCE THE OVERALL STRESS
The robust RMT55 was proven to deliver a high return on investment thanks to the low total cost of operation and was built for ease of maintenance and long-lasting performance. This Truck delivers a tight turning radius and offers excellent maneuverability, enhanced serviceability and operator comfort.
RELIABILITY

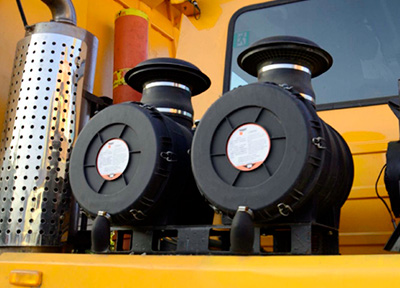

Air cleaner, dry type, two-stage, excellent dust holding capacity and a long service interval, developed a system with two separate air filter elements and in this way fulfilled all of the requirements of the customer.
SECURITY

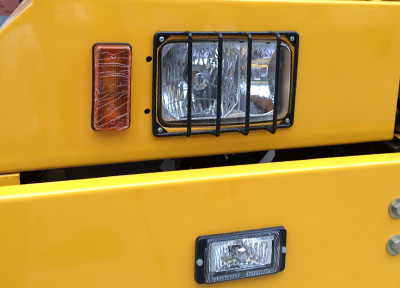

– Back-up light, rear
– Engine compartment light
– Head lights, halogen (high and low beam)
– Side working lights, LH and RH
– Stop and tail lights (LED)
– Turn signal, (two front, two rear)(LED) with hazard switch
PERFORMANCE
The reinforced articulated bearing ensures the reliability of the vehicle during steering and bumping. Large steering Angle design which is better than the industry level. Strong mobility, and operation efficiency significantly improved.
| Make/Model | Rhino / WD615 |
| Displacement L (cu. In) | 9.7(592) |
| Gross Power kW (Hp) @ Rated rpm | 279(374)@ 2,400 rpm |
| Peak Torque Nm (ft-lb) @ Rated rpm | 1,500(1,106)@ 1,600 rpm |
| Aspiration | Turbocharged |
| Type | 6 cylinders, 4 stroke, in-line |
| Gearbox | Nine speed, model: 9JSD180 |
| Drive Axle | Double reduction |
| Overall Length mm (ft) | 8,700(29) |
| Overall Width mm (ft) | 3,165(10) |
| Overall Height mm (ft) | 3,700(12) |
| Ground Clearance mm (in) | 390(15) |
| Min. Turning Radius m (ft) | 11(36) |
| Tires | 14.00 – 24 |
| Base Machine Operating Weight kg (lbs) | 22,000(48,502) |
| Payload kg (lbs) | 55,000(121,254) |
