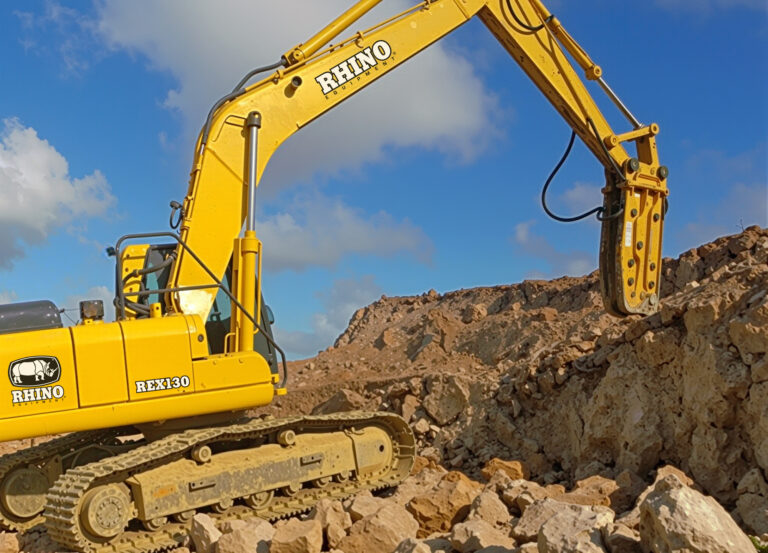

REX130 EXCAVATOR
Productivity and Performance
BUILD QUALITY, PERFORMANCE, EFFICIENCY, COMFORT, SAFETY AND SERVICEABILIT...
The Rhino REX130 compact excavator is designed to excel in the five attributes that are most important to excavator customers and operators: comfort, controllability, reliability, serviceability and performance. Rhino Equipment has been developed to exceed even your most exacting demands.
ATTACHMENTS
In addition to performing excavation work, Rhino Excavators attachments can be switched to adapt to a range of work sites from agriculture and forestry to landscaping, livestock farming, demolition and snow removal.
COMFORT
A spacious operator environment features an adjustable seat and ergonomic pilot controls for improved comfort and with the standard pattern selector, operators can quickly switch to the style they prefer.
RELIABILITY
Rhino REX excavators have safety and serviceability features that protect machinery, operators and bystanders alike, as well as minimize downtime.
| Engine Make/ Engine Model (optional) | Cummins 4BTAA3.9 / QSF3.8 or Rhino |
| Emission Rating (optional) | Tier 2 (Tier 3, Tier 4) |
| Cylinders | 4 |
| Displacement L (cu. In) | 3.9(238) / 3.9 (231) |
| Net Power kW (Hp) | 86(115) |
| Fuel System | Direct Injection |
| Aspiration | Turbocharged |
| Fan Drive | Belt driven / Hydraulic Reversible |
| Type | Dual speed mode for tracks on-dash one-button activation |
| Maximum Travel Speeds kph(mph): | |
| Low | 3(2) |
| High | 5(3) |
| Drawbar Pull kg (lb) | 8,000(17,637) |
| Carrier Rollers (each side) | 2 |
| Track Rollers (each side) | 7 |
| Shoes (each side) Triple Semi-Grousers | 42 |
| Track Adjustment | Hydraulic |
| Track Guides | Front Idler |
| Track Chain | Sealed and lubricated |
| Ground Pressure Kpa (psi) / Optional | 38(5.5) / 39 (5.6) |
| Fuel Tank L (gal) | 247(65) |
| Cooling System L (gal) | 14(4) |
| Engine Oil L (gal) | 11(3) |
| Hydraulic System L (gal) | 145(38) |
| Hydraulic Tank L (gal) | 130(34) |
| Swing Mechanism L (gal) | 0.5(0.1) |
| Final Drive Case (each) L (gal) | 2.6(0.7) |
| Arm Length mm (ft) | 2,500(8.2) |
| Arm Digging Force kN (lb) | 64(14.388) |
| Bucket Digging Force kN (lb) | 100(22.480) |
| Max. Reach mm (ft) | 8,305(27.2) |
| Max. Reach at Ground Level mm (ft) | 8,305(27.2) |
| Max. Digging Depth mm (ft) | 5,500(18.0) |
| Max. Cutting Height mm (ft) | 8,630(28.3) |
| Max. Dumping Height mm (ft) | 6,180(20.3) |
| Tail Swing Radius mm (ft) | 2,155(7.0) / 2,315 (8.2) |
| Operating Weight kg(lb) / Optional | 13,000(28.600) / 14,000 (30.864) |
| Overall Length / Optional mm (ft) | 7,580(24.8) / 7,740(25.3) |
| Overall Height mm (ft) | 2,880(9.4) |
| Length of Track on Ground / Optional mm (ft) | 2,750(9.0) / 3,000(9.8) |
| Undercarriage Length / Optional mm (ft) | 3,485(11.4) / 3,375(12.2) |
| Counterweight Clearance mm (ft) | 870(2.9) |
| Upperstructure Width mm (ft) | 2,490(8.2) |
| Height to Top of Cab mm (ft) | 2,830(9.2) |
| Track Width / Optional mm (in) | 500(19.7) / 600(23.6) / 700(27.6) |
| Gauge Width / Optional mm (ft) | 1,960(6.4) / 2,000(6.5) |
| Overall Width with Triple Grouser 500 mm (20 in) Shoes / Optional mm (ft) | 2,460(8.0) / 2,500(8.2) |
