PT Compact Forklifts
Wide Range of Purposes
ENVIRONMENTALLY FRIENDLY, EFFICIENT, DEPENDABLE AND DURABLE
forklifts compact Rhino’s are celebrated for their durability and efficiency in outdoor material handling tasks. Engineered with precision, these forklifts compact offer fast travel speeds and superior torque, effortlessly managing loads ranging from 2,000 to 10,000 lbs. Not only do these compact forklifts excel in performance, but they also prioritize sustainability, making them a responsible choice for businesses aiming to reduce their environmental impact while maximizing productivity in various industrial settings..
TIRES
Pneumatic tires are similar to a car or truck tire and offer high performance and versatility. Pneumatic tires provide strong grip on uneven surfaces and tough terrain and are popular on construction sites, in lumber yards and indoor/outdoor warehouses.
COMFORT
A narrow operating console further help increase front view so operators can confidently secure materials and a low-profile hood provides a clear view behind the machine.
RELIABILITY

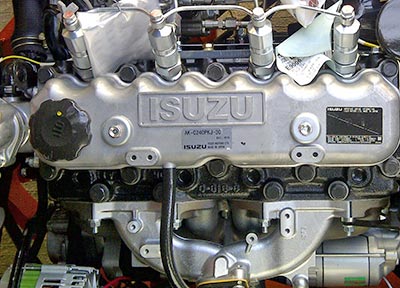

Diesel forklifts compact can be operated for longer periods of time before needing to be refuelled. Isuzu engine provides fast travel speeds and superior torque, leading to increased productivity and overall power to handle the toughest jobs.
MODELS
| Rated capacity kg (lb) | 2,000 (4,409) |
| Load center mm (in) | 500 (19.7) |
| Power type | Diesel |
| Transmission | Hydraulic/ Mechanical |
| Service Brakes | N/A |
| Load Backrest mm (in) | N/A |
| Lifting height mm (in) | 3,000 (118.1) |
| Free lifting height mm (in) | 60 (2.4) |
| Turning radius mm (in) | 2,450 (96.5) |
| Overall length mm (in) | 3,605 (141.9) |
| Overall width mm (in) | 1,160 (45.7) |
| Engine | Rhino 490BPG / Isuzu 4 JG2PE |
| Power kW (Hp) | 39 (52.3) |
| Rated speed rpm | 2,650 |
| Displacement L (cu.in) | 2.67 (163) |
| Rated capacity kg (lb) | 2,500 (5,512) |
| Load center mm (in) | 500 (19.7) |
| Power type | Diesel |
| Transmission | Hydraulic/ Mechanical |
| Service Brakes | N/A |
| Load Backrest mm (in) | N/A |
| Lifting height mm (in) | 3,000 (118.1) |
| Free lifting height mm (in) | 80 (3.1) |
| Turning radius mm (in) | 2,500 (98.4) |
| Overall length mm (in) | 3,800 (149.6) |
| Overall width mm (in) | 1,230 (48.4) |
| Engine | Rhino 490BPG / Isuzu 4 JG2PE |
| Power kW (Hp) | 39 (52.3) |
| Rated speed rpm | 2,650 |
| Displacement L (cu.in) | 2.67 (163) |
| Rated capacity kg (lb) | 3,000 (6,614) |
| Load center mm (in) | 500 (19.7) |
| Power type | Diesel |
| Transmission | Hydraulic/ Mechanical |
| Service Brakes | N/A |
| Load Backrest mm (in) | N/A |
| Lifting height mm (in) | 3,000 (118.1) |
| Free lifting height mm (in) | 80 (3.1) |
| Turning radius mm (in) | 2,500 (98.4) |
| Overall length mm (in) | 3,800 (149.6) |
| Overall width mm (in) | 1,230 (48.4) |
| Engine | Rhino 490BPG / Isuzu 4 JG2PE |
| Power kW (Hp) | 42(56.3) |
| Rated speed rpm | 2,650 |
| Displacement L (cu.in) | 2.67 (163) |
| Rated capacity kg (lb) | 4,000 (8,818) |
| Load center mm (in) | 500 (19.7) |
| Power type | Diesel |
| Transmission | Hydraulic/ Mechanical |
| Service Brakes | Hydraulic |
| Load Backrest mm (in) | 1,000 (39.3) |
| Lifting height mm (in) | 3,000 (118.1) |
| Free lifting height mm (in) | 80 (3.1) |
| Turning radius mm (in) | 2,720 (107.1) |
| Overall length mm (in) | 4,100 (161.4) |
| Overall width mm (in) | 1,230 (48.4) |
| Engine | Rhino 490BPG / Isuzu 4 JG2PE |
| Power kW (Hp) | 45(60.3) |
| Rated speed rpm | 2,500 |
| Displacement L (cu.in) | 3,17 (193) |
| Rated capacity kg (lb) | 5,000 (11,023) |
| Load center mm (in) | 500 (19.7) |
| Power type | Diesel |
| Transmission | Hydraulic/ Mechanical |
| Service Brakes | Hydraulic |
| Load Backrest mm (in) | 1,000 (39.3) |
| Lifting height mm (in) | 3,000 (118.1) |
| Free lifting height mm (in) | 150 (5.9) |
| Turning radius mm (in) | 3,000 (118.1) |
| Overall length mm (in) | 4,350 (171.3) |
| Overall width mm (in) | 1,400 (55.1) |
| Engine | Rhino LR4A3 / Isuzu 6BG1 |
| Power kW (Hp) | 59(79.1) |
| Rated speed rpm | 2,400 |
| Displacement L (cu.in) | 4,3 (262) |
| Rated capacity kg (lb) | 7,000 (15,432) |
| Load center mm (in) | 500 (19.7) |
| Power type | Diesel |
| Transmission | Hydraulic |
| Service Brakes | Hydraulic |
| Load Backrest mm (in) | N/A |
| Lifting height mm (in) | 3,000 (118.1) |
| Free lifting height mm (in) | 210 (8.3) |
| Turning radius mm (in) | 3,450 (135.8) |
| Overall length mm (in) | 4,800 (189.0) |
| Overall width mm (in) | 1,995 (78.5) |
| Engine | Rhino LR4A4 / Isuzu 6BG1 |
| Power kW (Hp) | 81(108.6) |
| Rated speed rpm | 2,500 |
| Displacement L (cu.in) | 5.7 (353) |
| Rated capacity kg (lb) | 10,000 (22,046) |
| Load center mm (in) | 600 (23.6) |
| Power type | Diesel |
| Transmission | Hydraulic |
| Service Brakes | Hydraulic |
| Load Backrest mm (in) | N/A |
| Lifting height mm (in) | 3,000 (118.1) |
| Free lifting height mm (in) | 195 (7.7) |
| Turning radius mm (in) | 3,900 (153.5) |
| Overall length mm (in) | 5,480 (215.7) |
| Overall width mm (in) | 2,275 (89.6) |
| Engine | Rhino LR4A5 / Isuzu 6BG1 |
| Power kW (Hp) | 81(108.6) |
| Rated speed rpm | 2,500 |
| Displacement L (cu.in) | 5.7 (353) |
