RWD315 WHEEL DOZER
Robust, Productive and Fuel Efficient
OPTIMIZED PERFORMANCE AND SIMPLIFIED SERVICEABILITY

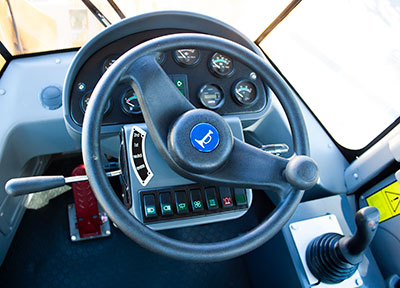

A wider cab increases the operator’s productivity by offering better visibility and greater comfort, with two windows that allow the operator to move across the cab and better console visibility. The RWD132 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
COMFORT
A spacious operator environment features an adjustable seat and ergonomic pilot controls for improved comfort and with the standard pattern selector, operators can quickly switch to the style they prefer.
RELIABILITY
Rhino RWD Wheel Dozers have safety and serviceability features that protect machinery, operators and bystanders alike, as well as minimize downtime.
EFFICIENCY
Their manoeuvrability and flexibility make them the ideal workhorses in environments that demand speed and agility while maintaining the highest levels of operator safety.
| Model | Cummins QMS11 |
| Emissions (optional) | Tier 2 (Tier 3, Stage IIIA, Tier 4) |
| Cylinders | 6 |
| Displacement L (cu. In) | 10.8(659) |
| Net Power kW (Hp) @ Rated rpm | 220(300)@ 2,100 rpm |
| Fuel System | Direct Injection |
| Aspiration | Turbocharged, Water cooled |
| Type | Powershift, Fixed Shaft |
| Torque Converter | Single Stage, Single Phase and 3 Elements |
| Max. Travel Speed km/h (mph) | 37(23) |
| Shift Modes | Forward: 4, Reverse: 3 |
| Final Drives | Planetary Reduction, Single Stage |
| Rear Axel Oscillation | 24 degrees (12 degrees each direction) |
| Service Brakes | Double brake pedal dual circuit, hydraulic brake |
| Parking Brake | Manual, Electro controlled actuated drum brake acts as emergency brake |
| Tires | 26.5-25 / 29.5-25 |
| Fuel Tank L (gal) | 423(111) |
| Engine Oil L (gal) | 32(8) |
| Transmission Fluid L (gal) | 32(8) |
| Axle Oil (Front and Rear, each) L (gal) | 51(13) |
| Hydraulic Tank L (gal) | 300(79) |
| Height to Top of Cab and Canopy mm (ft) | 3,710(12.1) |
| Ground Clearance mm (ft) | 504(1.6) |
| Wheel Base mm (ft) | 3,400(11.1) |
| Length mm (ft) | 8,696(28.5) |
| Overall Width mm (ft) | 3,099(10.1) |
