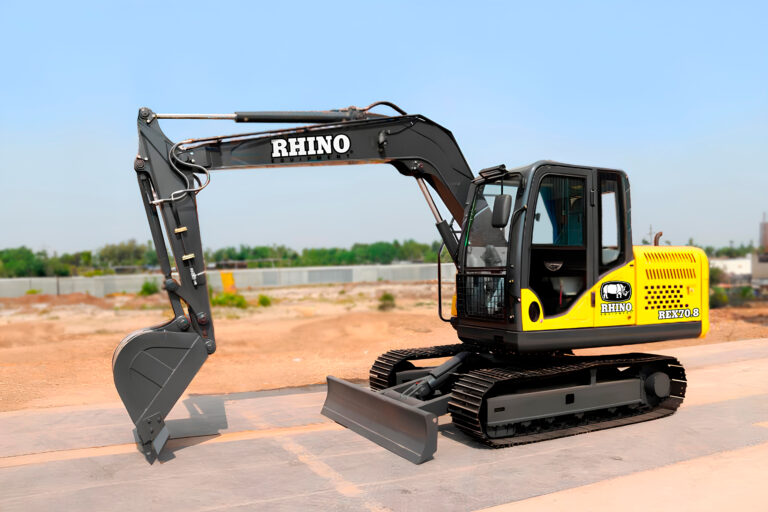

REX70.8 MINI EXCAVATOR
Efficiency & Operability
IMPROVING WORK EFFICIENCY AT VARIOUS SITES WITH EXCELLENT OPERABILITY
Work in confined spaces is increasing due to the progress of urbanization worldwide. Rhino Mini Excavators are products that strike a balance between compact bodies that handle confined spaces and the required level of workability and are demonstrating their capabilities along urban roadways, for waterworks and for in-home construction.
ATTACHMENTS
In addition to performing excavation work, Rhino Mini Excavators attachments can be switched to adapt to a range of work sites from agriculture and forestry to landscaping, livestock farming, demolition and snow removal.

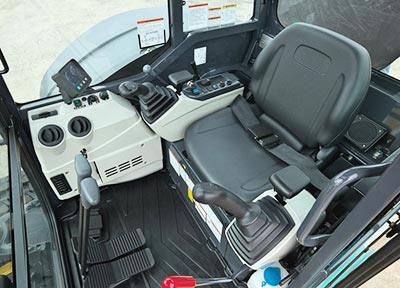

COMFORT
A spacious operator environment features an adjustable seat and ergonomic pilot controls for improved comfort and with the standard pattern selector, operators can quickly switch to the style they prefer.
RELIABILITY
Rhino REX excavators have safety and serviceability features that protect machinery, operators and bystanders alike, as well as minimize downtime.

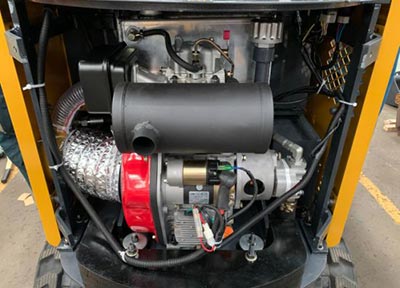

| Engine Make/ Engine Model | YANMAR 4TNV98T |
| Emission Rating (optional) | Tier 2 (Tier 3, Tier 4) |
| Cylinders | 4 |
| Displacement L (cu. In) | 3.3(201) |
| Net Power kW (Hp) | 54.3(73)@2,200 rpm |
| Fuel System | Direct Injection |
| Aspiration | Naturally Aspirated |
| Fan Drive | Belt driven |
| Type | Dual speed mode for tracks on-dash one-button activation |
| Maximum Travel Speeds kph(mph): | |
| Low | 2,7(1.68) |
| High | 5,1(3.17) |
| Type | Open center, load sensing; two variable-displacement axial-piston pumps |
| Pressure Mpa (psi) | 30(4351.13) |
| Max. Flow L/min (gpm) (each) | 154(41) |
| Control | 2 pilot levers, low-effort hydraulic controls with horn and boost buttons |
| Power Boost Mpa (psi) | 29(4.206) |
| Carrier Rollers (each side) | 1 |
| Track Rollers (each side) | 5 |
| Shoes (each side) Triple Semi-Grousers | 40 |
| Track Adjustment | Hydraulic |
| Track Guides | Front Idler |
| Track Chain | Sealed and lubricated |
| Ground Pressure Kpa (psi) | 30(4.4) |
| Fuel Tank L (gal) | 130(34) |
| Cooling System L (gal) | 8(2) |
| Engine Oil L (gal) | 11.7(3) |
| Hydraulic Tank L (gal) | 90(24) |
| Swing Mechanism L (gal) | 5(1) |
| Final Drive Case (each) L (gal) | 70(18) |
| Arm Length mm (ft) | 1,650(5.4) |
| Bucket Capacity m3 (cu. Yd.) | 0,34(0.44) |
| Bucket Excavating Force kN ISO (lb) | 60(13,49) |
| Length of Swing Arm mm (ft) | 3,710(12.17) |
| Counterweight Height mm (ft) | 1,725(5.7) |
| Max. Digging Depth mm (ft) | 4,038(13.2) |
| Overall Length mm (ft) | 6,100(20.0) |
| Overall Height mm (ft) | 2,515(8.3) |
| Counterweight Clearance mm (ft) | 760(2.5) |
| Height to Top of Cab mm (ft) | 2,680(8.8) |
| Track Width mm (in) | 450(1.7) |
| Track Gauge mm (ft) | 1,700(5.6) |
| Overall Width with mm (ft) | 2,300(7.5) |
