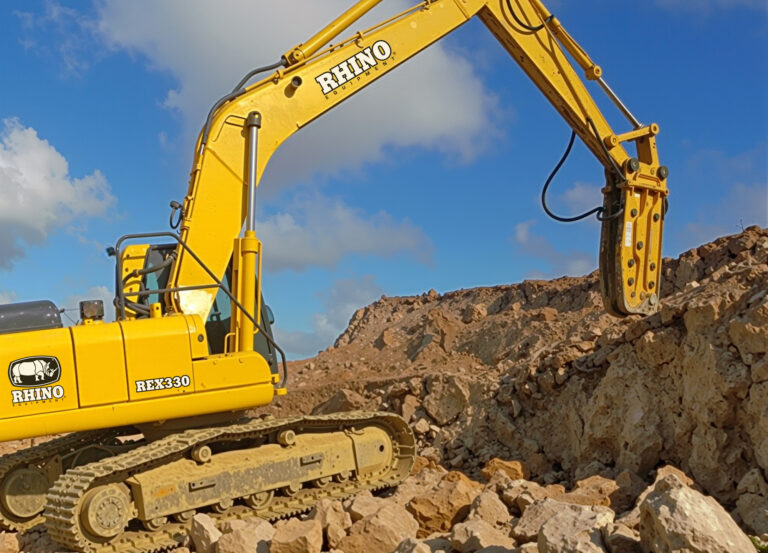

REX330 EXCAVATOR
Versatility and Excellent Fuel Efficiency
VERSATILITY AND PRODUCTIVITY
No matter what type of work you do – excavation, trenching, or truck loading REX330 excavators deliver top performance, unmatched versatility, and excellent fuel efficiency. Simple operation, outstanding durability and the latest safety and technology features will help you take your business to the next level.
ATTACHMENTS
In addition to performing excavation work, Rhino Excavators attachments can be switched to adapt to a range of work sites from agriculture and forestry to landscaping, livestock farming, demolition and snow removal.
COMFORT
A spacious operator environment features an adjustable seat and ergonomic pilot controls for improved comfort and with the standard pattern selector, operators can quickly switch to the style they prefer.
RELIABILITY
Rhino REX excavators have safety and serviceability features that protect machinery, operators and bystanders alike, as well as minimize downtime.
| Engine | Cummins 6LTAA8.9 or Rhino® |
| Emission Rating (optional) | Tier 2 (Tier 3, Tier 4) |
| Cylinders | 6 |
| Displacement L (cu. In) | 8.3(506) |
| Net Power kW (Hp) @2,000 | 241(323) /2,000 |
| Fuel System | Direct Injection |
| Aspiration | Turbocharged, air-to-air charge air cooler |
| Fan Drive | Belt driven |
| Type | Dual speed mode for tracks on-dash one-button activation |
| Maximum Travel Speeds km(mph) | 5.2(3.2) |
| Low | 3.3(2) |
| High | 5.2(3.2) |
| Type | Open center, load sensing; two variable-displacement axial-piston pumps |
| Pressure Mpa (psi) | 31(4,554) |
| Max. Flow L/min (gpm) (each) | 226(60) |
| Power Boost Mpa (psi) | 34(4,975) |
| Control | 2 pilot levers, low-effort hydraulic controls with horn and boost buttons |
| Carrier Rollers (each side) | 2 |
| Track Rollers (each side) | 7 |
| Shoes (each side) Triple Semi-Grousers | 45 |
| Track Adjustment | Hydraulic |
| Track Guides | Front Idler |
| Track Chain | Sealed and lubricated |
| Ground Pressure Kpa (psi) | 65(9.4) |
| Fuel Tank L (gal) | 595(157) |
| Cooling System L (gal) | 20.6(5) |
| Engine Oil L (gal) | 23(6) |
| Hydraulic Oil Tank L (gal) | 310(82) |
| Swing Mechanism L (gal) | 8.2(2.2) |
| Final Drive Case (each) L (gal) | 8.5(2.2) |
| Operating Weight kg (lbs) | 33,000 (72,753) |
| Travel Speed km/h (mph) | 5.2(3.3) |
| Swing Speed rpm | 10.6 |
| Gradeability (%) | 70 |
| Bucket Digging Force (kN) ISO (lbf) | 227(51) |
| Bucket Capacity m3 (cu.yd) | 1.4-1.6 (1.8-2.1) |
| Arm Length mm (ft) | 3,185 (10.4) |
| Overall Length mm (ft) | 11,150 (36.6) |
| Overall Width mm (ft) | 3,190 (10.5) |
| Boom m (ft) | 6,47 (21.2) |
| Total Height (Boom top) mm (ft) | 3,180 (10.4) |
| Total Height (Cap top) mm (ft) | 3,280 (10.8) |
| Counterweight Ground Clearance mm (ft) | 1,210 (4) |
| Min. Ground Clearance mm (ft) | 498 (1.6) |
| Turning Radius of Vehicle Tail mm (ft) | 3,420 (11.2) |
| Track Length on the Ground mm (ft) | 3,700 (12.1) |
| Track Shoe Length mm (ft) | 4,622 (15.2) |
| Track Gauge mm (ft) | 2,590 (8.5) |
| Track Width mm (ft) | 3,190 (10.5) |
| Track Shoe Width mm (ft) | 600 (2) |
| Swing Frame Width mm (ft) | 2,995 (9.8) |
| Max. Digging Height mm (ft) | 10,200 (33.5) |
| Max. Dumping Height mm (ft) | 7,135 (23.4) |
| Max. Digging Depth mm (ft) | 7,370 (24.2) |
| Max. Vertical Wall Digging Depth mm (ft) | 6,380 (20.9) |
| Max. Digging Reach mm (ft) | 11,100 (36.4) |
| Max. Digging Reach at Ground Level mm (ft) | 10,910 (35.8) |
| Min. Swing Radius mm (ft) | 4,265 (14) |
| Max. Height at Min. Swing Radius mm (ft) | 8,500 (27.9) |
| Distance from Swing Center to Tail mm (ft) | 3,420 (11.2) |
| Counterweight Height mm (ft) | 2,265 (7.4) |
| Ground Length (During Transporting) mm (ft) | 5,750 (18.9) |
