RCP1300W COLD PLANER
Improved Operation
AN ERGONOMIC WORK AREA WITH BETTER VISIBILITY
RCP1300W COLD PLANER contains both power and performance. To deliver maximum productivity we invest heavily in perfecting our milling drums, holder systems and cutting tools. An ergonomic work area with better visibility of the cutting area keeps operators informed and comfortable. Rhino Cold Planers put the tons in the trucks hour after hour, shift after shift.
PERFECT CONTROL

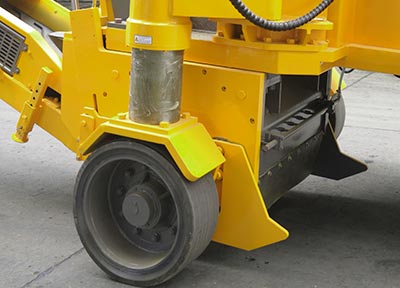

Independent elevating control of left and right wheels for quick adjustment of milling depth and curb milling. Easy access doors provide convinient access for the operator to change tools for asphalt or concrete milling.
EFFECTIVENESS
Full hydraulic travel and braking systems provide immediate response for effectiveness and safety. The hydrostatic closed loop system gives excellent power to weight ratios.
RELIABILITY

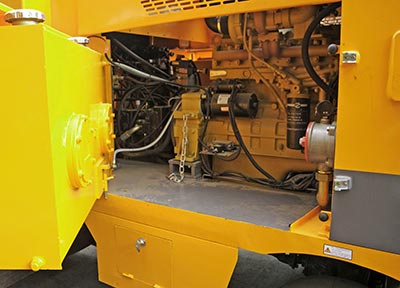

The diesel Engine provides excellent power, reliability, and efficiency in adverse working conditions. Conveniently placed filters allow for easy maintenance.
| Model | SC8D190G2B1 |
| Net Power kW (Hp) @ 2,200 rpm | 140(188) |
| Displacement L (cu. In) | 8.3(506) |
| Emissions | Tier 2, 3, 4 |
| Fuel System | Direct Injection |
| Lubrication | Full-flow spin-on filter |
| Aspiration | Turbocharged |
| Air Cleaner | Under-hood, dual element dry type |
| Drive System | Hydraulically activated, Heavy-Duty clutches |
| Milling Speed m/min (in/min) | 15(591) |
| Number of tools | 110 |
| Cutting Width mm (in) | 1,300(51) |
| Cutting Depth mm (in) | 120(4.7) |
| Rotor Diameter mm (in) | 720(28) |
| Tool Spacing (tip) mm (in) | 15(0.6) |
| Speed @2,200 rpm | 116 rpm |
| Type | Hydraulically driven for maximum productivity |
| Width mm (in) | 450(18) |
| Max. Feeding Height mm (ft) | 3,500(11) |
| Swing | 30 degrees (15 degrees each side) |
| Pump Type | Gear Pump, Constant displacement |
| System Pressure Mpa (psi) | 35(5,076) |
| Fuel Tank L (gal) | 240(63) |
| Coolant L (gal) | 20(5) |
| Engine Oil L (gal) | 18(5) |
| Water Tank L (gal) | 350(92) |
| Hydraulic Tank L (gal) | 300(79) |
| Overall Length with Conveyor Up mm (ft) | 10,642(34.9) |
| Length Without Conveyor mm (ft) | 3,815(12.5) |
| Overall Width mm (ft) | 2,325(7.6) |
| Max. Height Canopy Raised mm (ft) | 3,100(10.2) |
| Min. Height No Canopy mm (ft) | 2,650(8.7) |
| Max. Truck Clearance mm (ft) | 3,500(11.5) |
| Wheelbase mm (ft) | 2,480(8.1) |
| Front Wheel to Front of Machine mm (ft) | 850(2.8) |
