RC180 VIBRATORY COMPACTOR
Previous slide
Next slide
Productivity and Reliability
MAINTENANCE AND INSPECTIONS CAN BE CONDUCTED MORE EFFICIENTLY
Rhino RC180 Vibratory Compactor is built with a perfectly optimized engine that delivers high torque at low rpm for superior performance and low fuel consumption. The rollers are suitable for most types of road construction, airfields, harbour projects and industrial constructions.

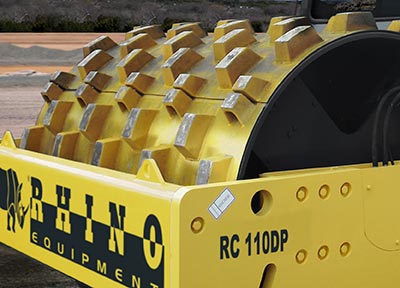

DRUM PERFORMANCE
The compactor is quickly and easily converted from a smooth drum by clamping on a padfoot shell. The padfoot shell kit allows the machine to work in different applications and increases versatility.

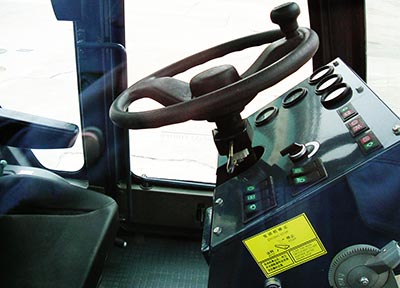

COMFORT
Ultimate comfort and a productive working environment. Safe, spacious and with improved all-around visibility, operators will work efficiently with less fatigue in a Rhino compactor.
RELIABILITY
A reliable engine delivers high torque at low rpm for superior performance and low fuel consumption. The compactor’s engine has been developed to offer greater fuel efficiency, increasing uptime and reducing costs.
| Make / Model | Cummins 6BT5.9 |
| Net Power kW (Hp) @ 2,600 rpm | 132(177) |
| Displacement L (cu. In) | 5.9(360) |
| Peak Torque Nm (ft-lb) @ 1,600 rpm | 620(457) |
| Emissions (optional) | Tier 2 (Tier 3, Tier 4) |
| Fuel System | Direct Injection |
| Lubrication | Full-flow spin-on filter |
| Aspiration | Turbocharged |
| Air Cleaner | Under-hood, dual element dry type |
| Fan Drive | Belt driven |
| Min. Frequency Hz (vpm) | 35(2,100) |
| Max. Frequency Hz (vpm) | 28(1,680) |
| High nominal Amplitude mm(in) | 1.9(0.07) |
| Low nominal Amplitude mm(in) | 0.95(0.04) |
| High centrifugal Force kN (lbf) | 375(84,303) |
| Low centrifugal Force kN (lbf) | 270(60,698) |
| Pump Type | Piston pump, Variable displacement, Closed Center |
| System Pressure Mpa (psi) | 40(5,802) |
| Vibration System Pressure Mpa (psi) | 28(4,061) |
| Steering System Pressure Mpa (psi) | 15(2,176) |
| Fuel Tank L (gal) | 300(79) |
| Engine Oil L (gal) | 15(4) |
| Hydraulic Tank L (gal) | 200(53) |
| Gear Box L (gal) | 2.2(0.6) |
| Axle Oil L (gal) | 18(5) |
| Brake System L (gal) | 1.5(0.4) |
| Vibration Drum (both sides, each) L (gal) | 56(15) |
| Overall Length mm (ft) | 6,435(21.1) |
| Overall Width mm (ft) | 2,280(7.5) |
| Max. Machine Height mm (ft) | 3,090(10.1) |
| Wheelbase mm (ft) | 3,380(11.1) |
| Ground Clearance mm (ft) | 480(1.6) |
| Min. Turning Radius mm (ft) | 7,500(24.6) |
| Articulation Angle | 35 degrees |
| Gradeability | 30% |
| Drum Width mm (in) | 2,100(82.7) |
| Drum Diameter mm (in) | 1,450(57.1) |
| Machine with Cab Kg (lb) | 18,000(39,683) |
| Weight at the Drum with Cab Kg (lb) | 9,500(20,944) |
| Weight at the Rear Axel with Cab Kg (lb) | 8,500(18,739) |
| Operating Weight with Drum Drive System Kg (lb) | 18,200(40,124) |
| Operating Weight with Drum Drive System and Pad Foot Kg (lb) | 19,130(42,174) |
| Static Linear Load kg/cm (lb/in) | 47.0(26.8) |
