RC100 VIBRATORY COMPACTOR
Previous slide
Next slide
Maximum Versatility
HIGH TORQUE AT LOW RPM FOR SUPERIOR PERFORMANCE
Rhino vibratory compactor displays excellent strength and efficiency. It’s a single drum soil compactor that offers superior productivity and leads the industry in output with the best compaction per pass. The rollers are suitable for most types of road construction, airfields, harbour projects and industrial constructions.
DRUM PERFORMANCE

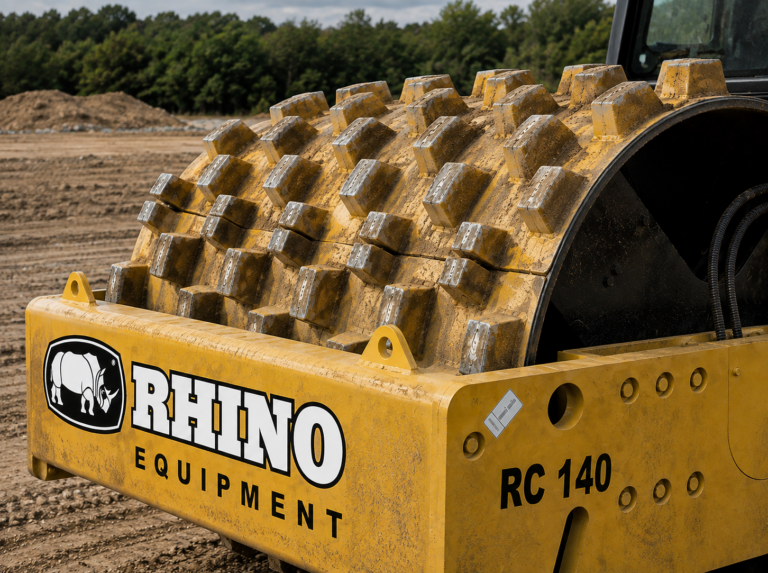

The compactor is quickly and easily converted from a smooth drum by clamping on a padfoot shell. The padfoot shell kit allows the machine to work in different applications and increases versatility.
COMFORT
Ultimate comfort and a productive working environment. Safe, spacious and with improved all-around visibility, operators will work efficiently with less fatigue in a Rhino compactor.
RELIABILITY
A reliable engine delivers high torque at low rpm for superior performance and low fuel consumption. The compactor’s engine has been developed to offer greater fuel efficiency, increasing uptime and reducing costs.
| Make / Model | Cummins 6BT5.9 |
| Net Power kW (Hp) @ 2,600 rpm | 110(148) |
| Displacement L (cu. In) | 5.9(360) |
| Peak Torque Nm (ft-lb) @ 1,600 rpm | 560(413) |
| Emissions (optional) | Tier 2 (Tier 3, Tier 4) |
| Fuel System | Direct Injection |
| Lubrication | Full-flow spin-on filter |
| Aspiration | Turbocharged |
| Air Cleaner | Under-hood, dual element dry type |
| Fan Drive | Belt driven |
| Min. Frequency Hz (rpm) | 29(1.56) |
| Max. Frequency Hz (rpm) | 35(2.10) |
| High Nominal Amplitude mm(in) | 1.6(0.06) |
| Low Nominal Amplitude mm(in) | 0.8(0.03) |
| High Centrifugal Force kN (lbf) | 260(58.45) |
| Low Centrifugal Force kN (lbf) | 160(35.97) |
| Pump Type | Piston pump, Variable displacement, Closed Center |
| System Pressure Mpa (psi) | 35(5,076) |
| Vibration System Pressure Mpa (psi) | 14(2,031) |
| Steering System Pressure Mpa (psi) | 11(1,595) |
| Fuel Tank L (gal) | 250(66) |
| Engine Oil L (gal) | 15(4) |
| Hydraulic Tank L (gal) | 100(26) |
| Gear Box L (gal) | 2.2(0.6) |
| Axle Oil L (gal) | 18(5) |
| Brake System L (gal) | 1.5(0.4) |
| Vibration Drum (both sides, each) L (gal) | 9(2) |
| Overall Dimension mm (ft) | 5,610×2,280×3,000 (18.4×7.5×9.8) |
| Max. Machine Height mm (ft) | 2,950(9.7) |
| Wheelbase mm (ft) | 3,060(10) |
| Min. Ground Clearance mm (ft) | 360(1.2) |
| Turning Radius mm (ft) | 7,000(23) |
| Articulation Angle | 35 degrees |
| Gradeability | 30% |
| Drum Width mm (in) | 2,100(82.7) |
| Drum Diameter mm (in) | 1,350(53.1) |
| Max. Travel Speed km/h (mph) | 10,2 (6.3) |
| Operating Weight with Drum Drive System Kg (lb) | 10,000(22,046) |
| Operating Weight with Drum Drive System and Pad Foot Kg (lb) | 11,130(24,537) |
| Machine with Cab Kg (lb) | 10,200(22,487) |
| Weight at the Drum with Cab Kg (lb) | 4,850(10,692) |
| Weight at the Rear Axel with Cab Kg (lb) | 4,150(9,149) |
| Static Linear Load N/m (ft-lbf) | 262(193.2) |
